Created with Pixso. Optical Fiber Talk Set 1310nm/1550nm

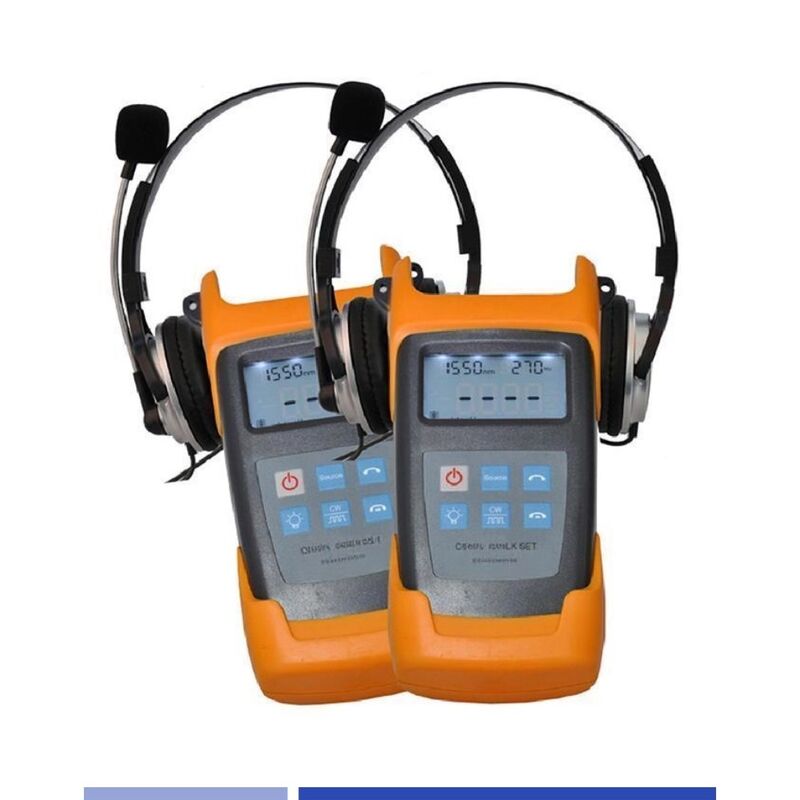

Optical Fiber Talk Set 1310nm/1550nm

Tên thương hiệu: Neutral
Số mẫu: GL-OTS01-1315
MOQ: 1 BỘ
Thời gian giao hàng: 1-3 ngày làm việc
Điều khoản thanh toán: T/T
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Ứng dụng:
Để lắp đặt, kiểm tra, bảo trì và xử lý sự cố cáp quang
Bước sóng:
1310nm, 1550nm
Loại phát:
FP-LD
Khoảng cách truyền (km):
≥100km
Trưng bày:
Màn hình LCD có đèn nền
Dải động (dB):
≥33
Công suất đầu ra (dB):
-5~-7
Độ ổn định đầu ra (dB,30 phút,20 °C):
≤ 0,1
Điều chế (Hz):
CW,270,1K,2K
Nguồn điện:
3 Pin Alkaline 1.5V/Bộ Chuyển Nguồn 8.4V
Kích thước:
29*23*8.5cm
Thời gian hoạt động của pin:
5 giờ
Nhiệt độ hoạt động (° C):
-10 ~ +60
Cân nặng:
3,5kg
chi tiết đóng gói:
1 bộ/hộp
Làm nổi bật:

1310nm 1550nm optical fiber talk set

,

fiber optic communication tool set

,

optical fiber test set with warranty

Mô tả sản phẩm
Optical Fiber Talk Set 1310nm/1550nm

Professional handheld communication device for fiber optic installation, maintenance, and testing applications.

Product Overview

The Optical Talk Set provides full-duplex voice communication over optical fiber, enabling clear communication during splicing, testing, and troubleshooting work. This portable device is ideal for telecom, CATV, and data network applications where conventional communication methods are limited. Selected models integrate a stabilized light source for added testing convenience.

Key Features
  • Full duplex voice communication over optical fiber
  • Long transmission distance capability
  • Stable and clear voice quality
  • Compatible with single mode fiber
  • Compact and portable design
  • Low power consumption
Ordering Information
Part Number Description
GL-OTS01-1315 Optical fiber talk set, 1310/1550nm
