| Tên thương hiệu: | GoreLink |
| Số mẫu: | G702-24LC-903 |
| MOQ: | Negotiable |
| Thời gian giao hàng: | 1-7 ngày làm việc |
| Điều khoản thanh toán: | T/T, Western Union, Paypal |

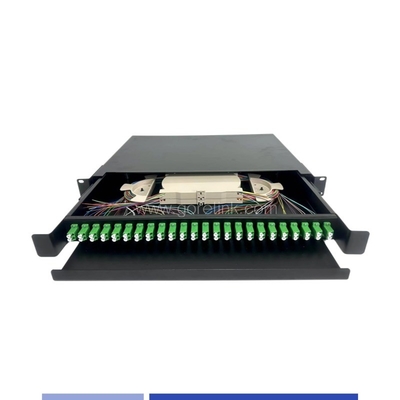

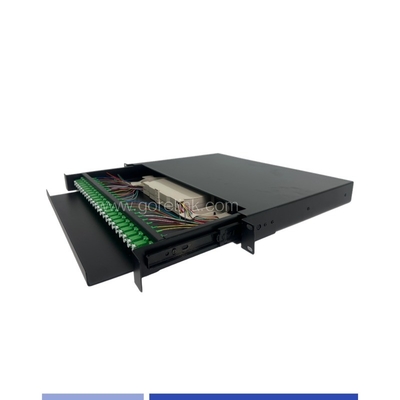

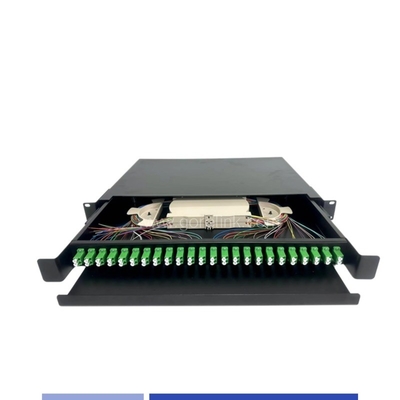

Gorelink offers a variety of fiber patch panels. The rack-mounted fiber patch panel is a hardware unit that houses fiber optic connectors and facilitates the termination, connection, and management of fiber optic cables. It is designed to be mounted on a standard 19-inch server rack or network cabinet, providing an organized and secure way to manage fiber optic connections.There are 12 port,24 port,48 port,96 port available.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Parameters |
|
|
Design |
Sliding Rail |
|
Material |
Cold rolled steel sheet |
|
Mounting Type |
19" Rack Mounted |
|
Capacity |
48 Fibers |
|
No. Of Rack Unit |
1U |
|
No. Of Tray |
2x24F |
|
Capacity of Tray |
24F |
|
Adapter |
LC Duplex Port |
|
Loaded |
LC/APC SM Duplex adapter |
|
Insertion Loss |
≤ 0.3dB |
|
Return Loss |
≥ 55dB |
|
Color |
Black |
|
Dimension |
483x300x1U(44.5)mm |
|
Operating Temperature (°C) |
-20 ~ +75 |
|
Storage Temperature (°C) |
-40 ~ +85 |
Ordering Information
|
PART NO. |
DESCRIPTION |
|
G702-24W |
24 Port Fiber Optic patch panel,1U,19" Rack Mounted,Sliding rail,Unloaded adapter plate |
|
G702-24LC |
24 Port Fiber Optic patch panel, LC/APC Duplex(48 Fibers),1U,19" Rack Mounted,Sliding rail,Unloaded adapter and pigtails |
|
G702-24LC-903 |
24 Port Fiber Optic patch panel, LC/APC Duplex(48 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded SM LC/APC Duplex adapter |
|
G702-24LC-904 |
24 Port Fiber Optic patch panel, LC/APC Duplex(48 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded SM LC/APC Duplex and 1m LSZH pigtail |
|
* Customized |
|
If you need any further assistance, please feel free to contact us at sales@gorelink.com .
|
|
