| Tên thương hiệu: | GoreLink |
| Số mẫu: | GL-GYXTC8S-802 |
| MOQ: | 1000m |
| Thời gian giao hàng: | As per the order quantity |
| Điều khoản thanh toán: | T/T,Paypal,Western Union, |

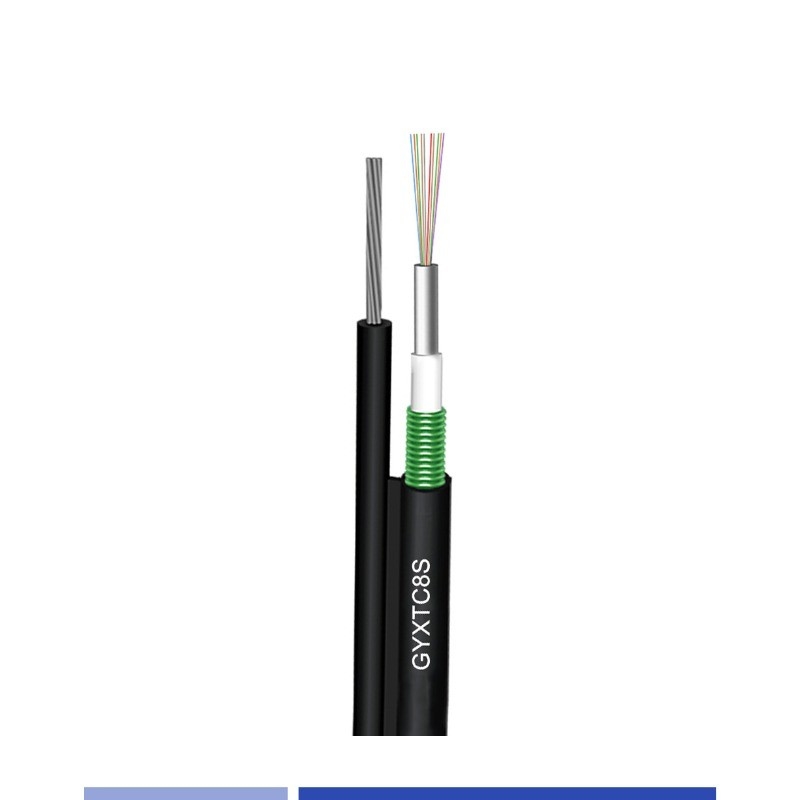

Outdoor Aerial Fiber Optic Cable,2 Fiber, Singlemode 9/125, Armored, with steel wire messenger,PE,Black,GYXTC8S
Gorelink Fiber Optic Arerial Cables are made for outdoor use along utility poles for cable television, telecom or other outside plant campus backbone applications. With the sturdy 1/4" galvanized messenger wire pre-attached to the aerial fiber optic cable, the cable is self-supported, virtually eliminating the need for the aerial fiber cable to be lashed to an external wire. This figure-eight design reduces the installation time and cost by approximately 50% when compared to separate installation of a messenger wire and the lashing of the cable to the messenger.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Fiber Mode |
Singlemode G652D |
|
Fiber Count |
2 Core |
|

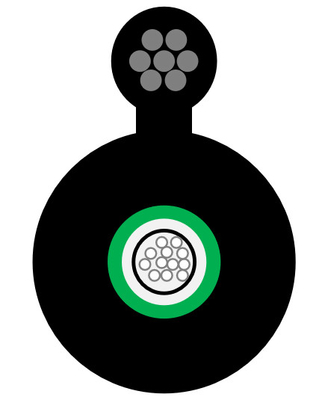

Cable structure |
Uni-Central Loose tube |
|
Cable Armor |
Corrugated Steel Tape Armor |
|
Strength Messenger |
7x 1.0mm Steel wire |
|
Cable Diameter |
9.8-10.5mm |
|
Outer Jacket |
PE |
|
Cable Color |
Black |
|
Cable length |
As per the order request |
|
OPTICAL PERFORMANCE |
|
|
Attenuation(dB/km) |
≤0.36 dB @1310nm |
|
Core diameter(um) |
9±2.5 |
|
Cladding diameter(um) |
125±1.0 |
|
Wavelength |
1310nm / 1550nm |
Download Datasheet
| Outdoor Aerial Fiber Optic Cable- GYXTC8S-Singlemode |
Ordering Information
|
PART NO. |
DESCRIPTION |
|
GL-GYXTC8S-802 |
Outdoor Aerial Fiber Optic Cable,2 Fiber,Singlemode G652D,PE,Black,GYXTC8S |
|
GL-GYXTC8S-806 |
Outdoor Aerial Fiber Optic Cable,6 Fiber,Singlemode G652D,PE,Black,GYXTC8S |
|
GL-GYXTC8S-808 |
Outdoor Aerial Fiber Optic Cable, 8 Fiber,Singlemode G652D,PE,Black,GYXTC8S |
|
GL-GYXTC8S-812 |
Outdoor Aerial Fiber Optic Cable,12 Fiber,Singlemode G652D,PE,Black,GYXTC8S |
|
* Customized |
|
If you need any further assistance, please feel free to contact us at sales@gorelink.com .
|
|
