| Tên thương hiệu: | GoreLink |
| Số mẫu: | GL-GYTC8S-824 |
| MOQ: | 1000m |
| Thời gian giao hàng: | As per the order quantity |
| Điều khoản thanh toán: | T/T,Paypal,Western Union, |

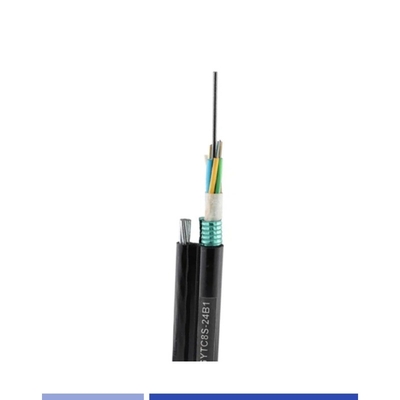

Gorelink Fiber Optic Arerial Cables are made for outdoor use along utility poles for cable television, telecom or other outside plant campus backbone applications. With the sturdy 1/4" galvanized messenger wire pre-attached to the aerial fiber optic cable, the cable is self-supported, virtually eliminating the need for the aerial fiber cable to be lashed to an external wire. This figure-eight design reduces the installation time and cost by approximately 50% when compared to separate installation of a messenger wire and the lashing of the cable to the messenger.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Fiber Mode |
Singlemode G652D |
|
Fiber Count |
24 Core |
|

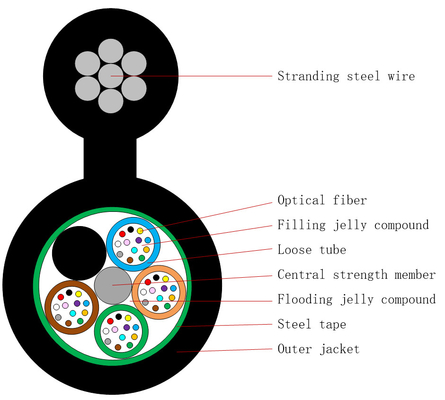

Cable structure |
Stranded Loose tube |
|
Cable Armor |
Corrugated Steel Tape Armor |
|
Central Member |
Steel wire |
|
Strength Messenger |
7x 1.0mm Steel wire |
|
Cable Diameter |
9.5*16.5±0.5mm |
|
Outer Jacket |
PE |
|
Cable Color |
Black |
|
Cable length |
As per the order request |
|
OPTICAL PERFORMANCE |
|
|
Attenuation(dB/km) |
≤0.36 dB @1310nm |
|
Core diameter(um) |
9±2.5 |
|
Cladding diameter(um) |
125±1.0 |
|
Wavelength |
1310nm / 1550nm |
Download Datasheet
| Outdoor Aerial Fiber Optic Cable- GYTC8S-Singlemode |
Ordering Information
|
PART NO. |
DESCRIPTION |
|
GL-GYTC8S-802 |
Outdoor Aerial Fiber Optic Cable, 2 Fiber, Singlemode G652D, PE, Black, GYTC8S |
|
GL-GYTC8S-806 |
Outdoor Aerial Fiber Optic Cable, 6 Fiber, Singlemode G652D, PE, Black, GYTC8S |
|
GL-GYTC8S-808 |
Outdoor Aerial Fiber Optic Cable, 8 Fiber, Singlemode G652D, PE, Black, GYTC8S |
|
GL-GYTC8S-812 |
Outdoor Aerial Fiber Optic Cable,12 Fiber, Singlemode G652D, PE, Black, GYTC8S |
|
GL-GYTC8S-824 |
Outdoor Aerial Fiber Optic Cable, 24 Fiber, Singlemode G652D, PE, Black, GYTC8S |
|
* Customized |
|
If you need any further assistance, please feel free to contact us at sales@gorelink.com.
|
|
